Description
ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 2 system includes ICON-engineered 4.5 dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, making the Stage 2 system a great choice for any 2014-UP Ram 2500 4WD that’s used for daily driving, towing, and recreational off-road driving.
features & Benefits
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Decreased body roll
- Level stance from front to rear of vehicle
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- Vehicle specific tuned front and rear 2.5 Aluminum Series shocks provide superior damping and ride quality
Tech Info:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.25 Backspace / 13mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.50″ Backspace / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.50″ Backspace / 12mm Offset
- Recommended Aftermarket Tires: 37″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #90: May Not Be Compatible With Other Manufacturers Aftermarket Trackbars
- APPLICATION NOTE #103: Vehicles Equipped With 2 Piece Driveshafts Require Carrier Shim Kit 214211
- APPLICATION NOTE #105: Not For Vehicles With Rear Factory Air Ride
- Ships in Multiple Boxes

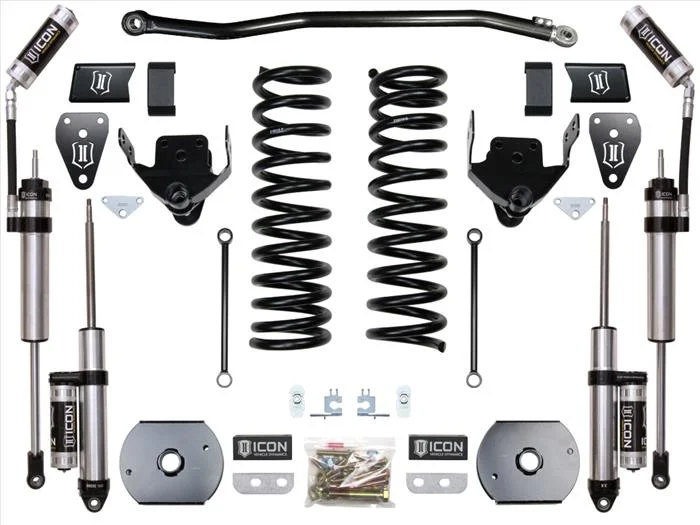

System Components:
- 214201 (QTY: 1) | 14-UP RAM 2500 4.5″ FRONT DUAL RATE SPRING KIT
- 214214 (QTY: 1) | 14-UP RAM 2500 FRONT ADJUSTABLE TRACK BAR KIT
- 214205 (QTY: 1) | 14-UP RAM 2500 4.5″ BOX KIT
- 217803P (QTY: 1) | 14-UP RAM 2500 4.5″ FRONT LIFT 2.5 VS RR PAIR
- 217707P (QTY: 1) | 14-UP RAM 2500 2″ STANDARD REAR 2.5 VS PB PAIR
K214522
